Flour Packing Machine

Flour Packing Machines are accessible with a screw feed conveyor attachment. This is highly appreciable for its optimum performance. The machines are used for a safe and hygienic packing of atta. The machines are suited for the automatic filling as well as sealing. These are accessible with good operating speed and have high applicability in the food industry. Flour Packing Machines have longer functional life, regular operation and are highly automatic. The feed rate of the offered machines is uniform as well as surges free. The working table of the machines is clean and are free from leakage.

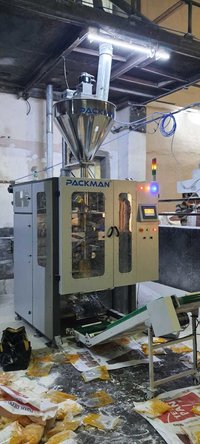

Fully Automatic Servo Base Auger Type Flour Packing Machine

Total operating system HMI in touch screen.

Total Panel controlling in PLC base.

Packing Range: 1kg to 10kg (Subject to density & grams of product)

Filling system by Servo motor screw & fennel.

Filling Accuracy 0.9 %(Subject- Density & grams of product)

Type of Sealing: Centre Sealing Pillow type.

Packing material: All Kinds of Dry powder, Besan, Maida & spices, wheat flour, rice powder,

Film size Width 300 mm to 800 mm. (In between any size)

220 mm to 600 mm Length

Thickness of film 70-120 microns.

Film role: Laminated film in role suppurated type E.g. Aluminum foil Pe.PP.

Speed:  10 25 pouch/min. (Sub. to density & Gr. of product)

Power requirements 3 phase 50 Hz.

Power consumption 7.5KW/Hour 440V AC.

Compressed air 5 HP Required.

All contact Parts are in 304 SS.

Sealer heating system continuously.

Pneumatic type sealing.

Film pulling with Vector driven down belt.

Maximum reel diameter 500 mm.

Pouch counter provided.

Automatic signal - buzzer and stop machine as we want to set.


Flour Packing machine

We are providing our valued clients with the precision-engineered Fully Automatic  Flour Packing Machine. Based on latest technology, these machines stand tall on the grounds of industry laid parameters. Furthermore, these machines are available with us in different technical specifications suited to the diversified demands of the clients.
