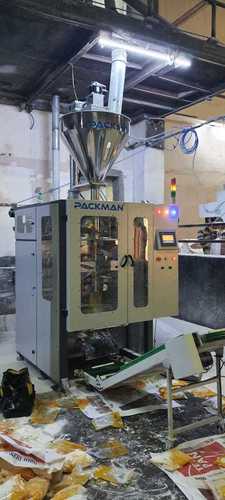

Product Description

Total operating system HMI in touch screen.

Total Panel controlling in PLC base.

Packing Range: 1kg to 10kg (Subject to density & grams of product)

Filling system by Servo motor screw & fennel.

Filling Accuracy 0.9 %(Subject- Density & grams of product)

Type of Sealing: Centre Sealing Pillow type.

Packing material: All Kinds of Dry powder, Besan, Maida & spices, wheat flour, rice powder,

Film size Width 300 mm to 800 mm. (In between any size)

220 mm to 600 mm Length

Thickness of film 70-120 microns.

Film role: Laminated film in role suppurated type E.g. Aluminum foil Pe.PP.

Speed:  10 25 pouch/min. (Sub. to density & Gr. of product)

Power requirements 3 phase 50 Hz.

Power consumption 7.5KW/Hour 440V AC.

Compressed air 5 HP Required.

All contact Parts are in 304 SS.

Sealer heating system continuously.

Pneumatic type sealing.

Film pulling with Vector driven down belt.

Maximum reel diameter 500 mm.

Pouch counter provided.

Automatic signal - buzzer and stop machine as we want to set.
